Battery Driven Valve Waterproof GPRS Transmit Prepaid Water meter in Indonesia

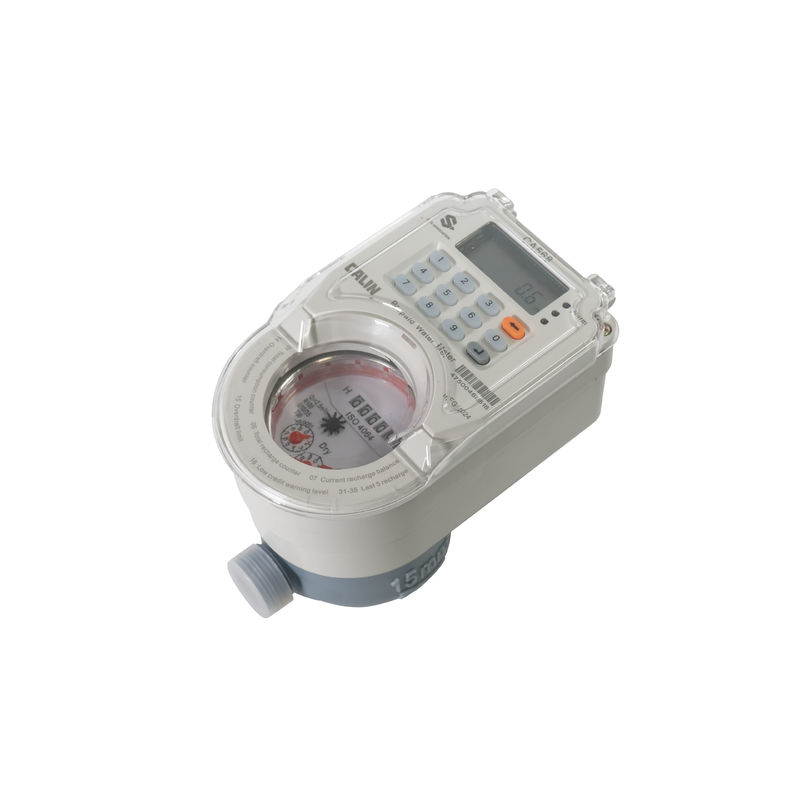

The CA568-G  is a multi-jet wet / dry type, GPRS remote reading and prepaid water meter.  The meter works with a low power  bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime.  CA568-G series assure you of continuously good metrology and revenue protection at the same time.With potted electronic part  sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.

The meter works with our Billing system station, the water meters can transmit the data via GPRS to the Billing station.

To top-up or recharge the water meter, a consumer just need to purchase 20 digits'  credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage not only water meter but also STS prepaid electricity meters in one vending system.

Calinmeter has over 10 years experience in STS prepayment metering. We design, manufacture STS prepayment meters and OEM for other meter factories as well. Indonesia is our strategic long term market and our calin meter meets the national standard in Indonesia. There is no doubt that Calin is the right one you are not going to missing.

Features

a) DN15, 20, 25 up to DN100

b) Wireless LoRa technology

c) Split operation with an in home CIU

d) Up to 1 mile communication distance between meter and DCU(Data concentrator)

e) LCD and Counter register dual display

f) Potted electronics making meter water resistant in humid and tropical environments

g) Tamper and fraud proof

h) Low credit warning

i) Life time data retention in absence of power

j) Prepared for AMR / AMI functions (optional)

 Key benefits

1) Suitable for new reticulation and retrofittings

2) Multi-tariff and consumption record on Time of Use (TOU) basis

3) Auto-register with head-end sever system

4) Easy setting of free basic water, emergency credit, low credit warning, arrear policy

5) Supports drive-by reading and fully automated reading for AMI smart metering applications

6) Remote  valve control on / off

7) Reduced operational and inventory cost

Specifications:

Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)

Dimensions and diagram
